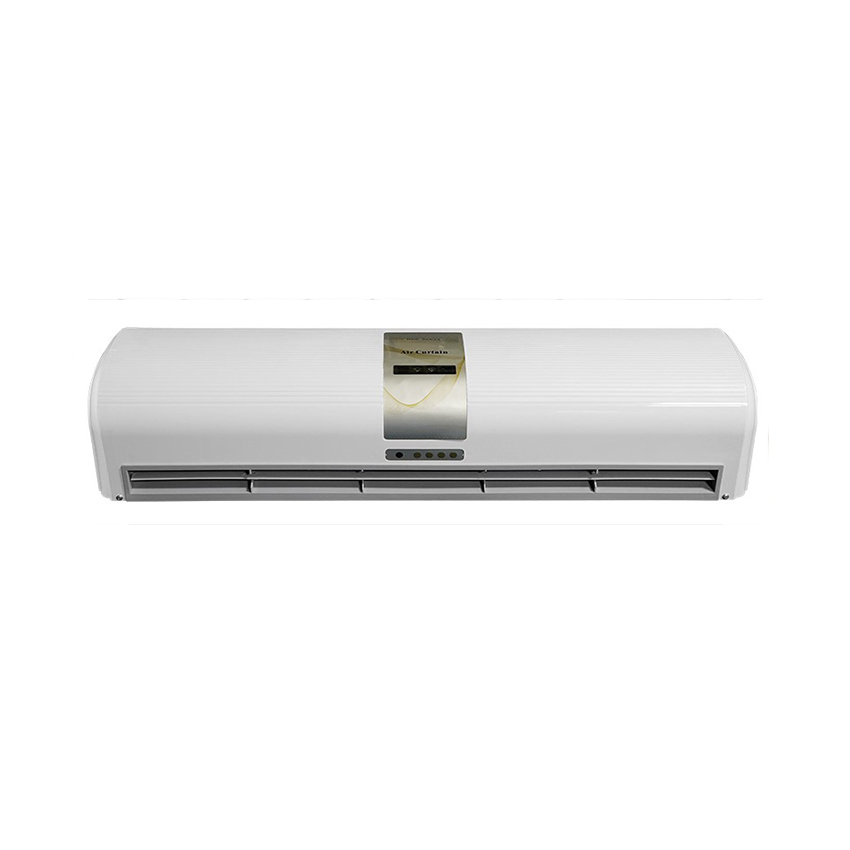

National Brand 5 Feet Air Curtain, Model: FM-5515QS-L/Y ||

Description

FM-5515QS-L/Y || National Brand 5 Feet Air Curtain.

FM-5515QS-L/Y || National Brand 5 Feet Air Curtain in Bangladesh.

Capacity/Size: 5 feet / 1500 mm / 59.10 inch.
Model: FM-5515QS-L/Y
Applicable/Effective: Door Width 5’ & Mounting Height up to 18’.
(Automatic Restart Function, Manual & Wireless Remote Controller Both Operations)

Made In: Malaysia.

 Warranty Coverage (FM-5515QS-L/Y):

1. Motor: 01 Year.
2. Spare Parts: 01 Year.
3. Service: 01 Year Free After-Sales Support.

Technical Specifications (FM-5515QS-L/Y):

1.  Power Supply: 220–240V / Single Phase / 50Hz

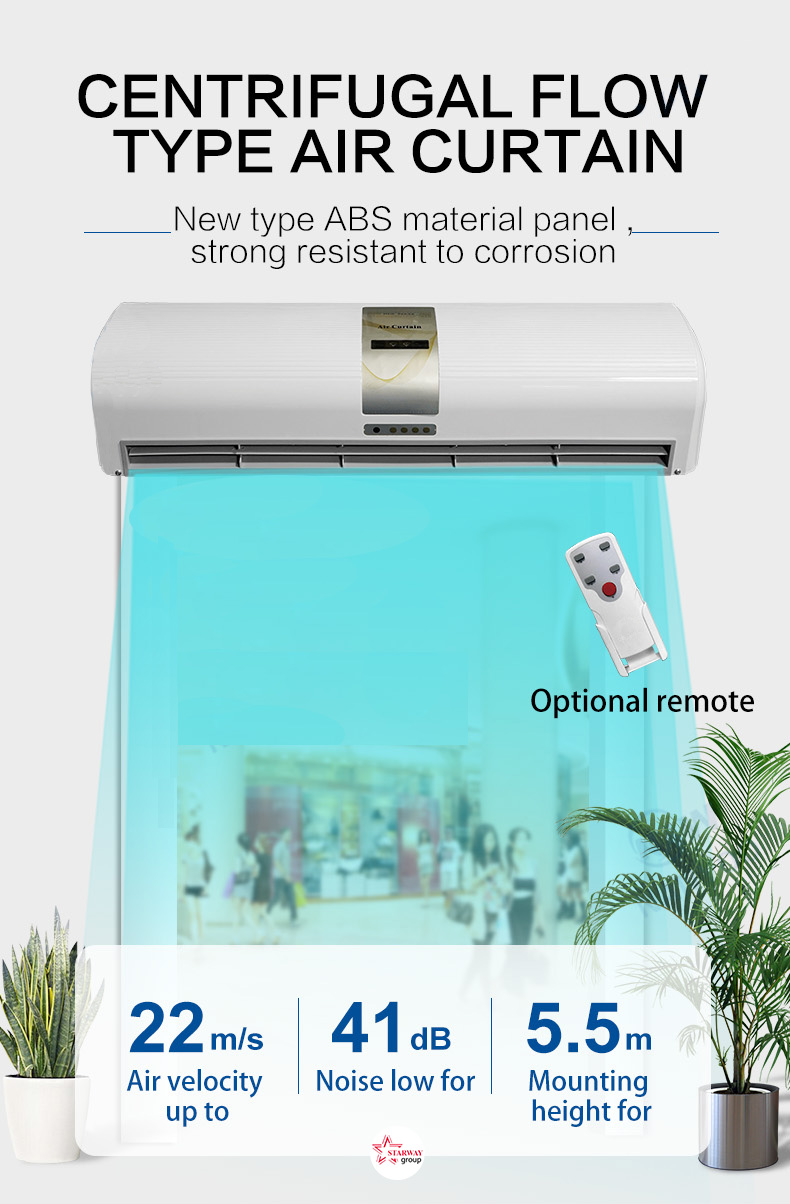

2.  Flow Type: Centrifugal Flow
3.  Applicable Door Width: 5 Feet
4.  Mounting Height: Up to 18 Feet
5.  Power Consumption: 405W / 535W / 710W
6.  Air Flow Rate: 1680 / 2135 / 2543 m³/hr or 988 / 1256 / 1496 CFM
7.  Air Speed Levels: 14.5 / 18.5 / 22 m/s
8.  Noise Level: 51 / 53 / 55 dB(A)
9.  Dimensions (W x D x H): 1500 x 230 x 220 mm
10.  Net Weight / Gross Weight: 21.5 Kg / 24 Kg

Special Features (FM-5515QS-L/Y):

1.  High-Speed Air Barrier: Effectively separates indoor and outdoor environments by creating two independent temperature zones.
2.  Prevents Cool/Warm Air Loss: Maintains internal climate, reducing HVAC load.
3.  Energy Saving: Helps reduce electricity bills by minimizing temperature exchange.
4.  Dust & Insect Control: Acts as a shield against airborne particles and insects.
5.  Smoke & Fume Protection: Blocks harmful fumes and smoke from entering.
6.  Industrial Use Ready: Keeps soot and dust particles out in challenging industrial environments.
7.  Easy Installation & Maintenance: Designed for hassle-free setup and servicing.
8.  Durable Build: Made from superior-quality materials for long-term performance.
9.  Versatile Applications: Suitable for various commercial and industrial settings.
10.  Multi-Speed Operation: Equipped with Low / Off / High operating switch.
11.  High Mounting Capability: Effective for floor heights up to 18 feet.
12.  Multiple Sizes Available: Comes in 3ft, 4ft, and 5ft options to suit different door widths.
